Seletor de SSD

Encontre o SSD certo para o seu aplicativo e o servidor Dell Technologies.

Selecionar seu aplicativo

Característica da carga de trabalho
Grandes leituras altamente paralelas

Requisitos de armazenamento
Anexo direto: SATA/SAS

Objetivo de desempenho de armazenamento
Capacidade de processar grandes quantidades de dados, principalmente operações de leitura para armazenamento.

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória

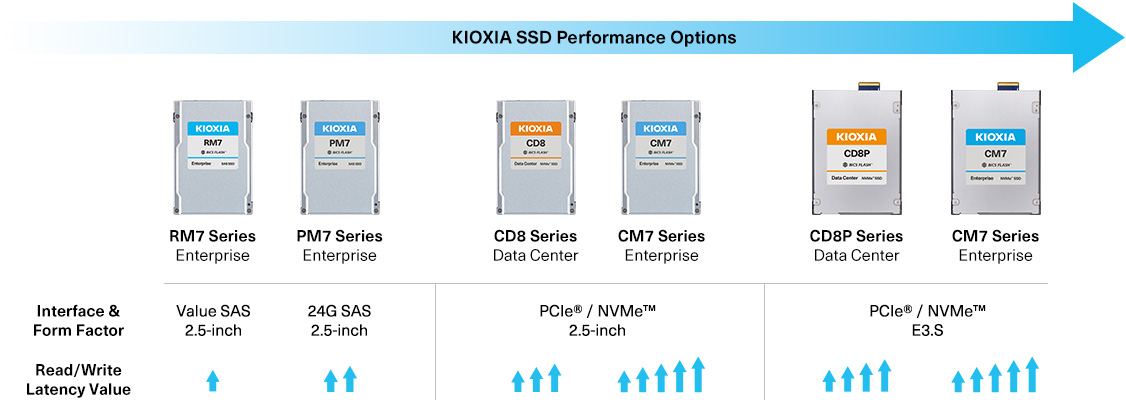

Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Pequenas gravações altamente paralelas

Requisitos de armazenamento
Anexo direto: SAS/NVMe

Objetivo de desempenho de armazenamento
Capacidade de ingerir grandes quantidades de entradas de sinal/sensor não processadas

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Gravações paralelas muito pequenas e operações de verificação

Requisitos de armazenamento
Anexo direto: SAS/NVMe

Objetivo de desempenho de armazenamento
Minimize o tempo de registro e as operações do ponto de verificação

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Leituras e gravações aleatórias de alta intensidade. Gravações sequenciais de log

Requisitos de armazenamento
RAID 10: SATA/SAS

Objetivo de desempenho de armazenamento
Maximize o desempenho aleatório de E/S

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
80% Leitura/20% Gravação (OLTP), tamanhos variados, gravações sequenciais de log

Requisitos de armazenamento
RAID 5: SATA/SAS

Objetivo de desempenho de armazenamento
Gerencie um alto número de solicitações aleatórias pequenas e a utilização eficaz do cache

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Leituras grandes seguidas por consultas ad-hoc de pequenas leituras aleatórias

Requisitos de armazenamento
RAID 10: SATA/SAS

Objetivo de desempenho de armazenamento
Forneça alta largura de banda de leitura para ETLs rápidos e IOPs altas para consultas comerciais rápidas

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Grandes leituras e gravações sequenciais

Requisitos de armazenamento
RAID 5: SAS

Objetivo de desempenho de armazenamento
Forneça alta largura de banda para grandes gravações no armazenamento. Largura de banda de leitura para acesso à imagem

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Grandes leituras/gravações sequenciais, indexação de metadados, acesso aleatório a conteúdo

Requisitos de armazenamento
RAID 10: SATA/SAS/NVMe

Objetivo de desempenho de armazenamento
Forneça alta largura de banda de leitura e gravação para grande movimentação de conteúdo. Também tem suporte a um grande número de leituras e gravações aleatórias simultâneas de arquivos.

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Grandes leituras e gravações sequenciais

Requisitos de armazenamento
Anexo direto: SATA/SAS/NVMe

Objetivo de desempenho de armazenamento
Forneça leituras e gravações de alta largura de banda para concluir as operações

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Dependente do aplicativo. Cargas de trabalho principalmente aleatórias

Requisitos de armazenamento
Anexo direto: NVMe

Objetivo de desempenho de armazenamento
IOPs altas aleatórias necessárias para suportar uma ampla variedade de cargas de trabalho baseadas em SDS

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Grandes leituras e gravações sequenciais

Requisitos de armazenamento
RAID 5: SATA/SAS

Objetivo de desempenho de armazenamento
Forneça leituras e gravações de alta largura de banda para concluir as operações e cumprir as obrigações do SLA

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s

Característica da carga de trabalho
Leituras aleatórias altamente paralelas

Requisitos de armazenamento
RAID 10: SATA/SAS

Objetivo de desempenho de armazenamento
IOPs altas e largura de banda de leitura para maximizar a conclusão de consultas complexas em tempo real.

Principais métricas de desempenho

【PTBR】* Table can be scrolled horizontally.

Seq. pequena Leitura Seq. grande Leitura Seq. pequena Gravação Seq. grande Gravação Leitura aleatória pequena Leitura aleatória grande Gravação aleatória


Série KIOXIA Solid State Drive (SSD) sugerida

RM7 (Value SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
RM7-R Read Intensive SED 1 DWPD(4) 960GB - 7,680GB 190K IOPS(6) 40K IOPS(6) 1,100 MB/s 1,050 MB/s
RM7-V Mixed Use SED 3 DWPD 960GB - 3,840GB 190K IOPS Up to 55K IOPS 1,100 MB/s 1,050 MB/s
PM7 (Enterprise SAS)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
PM7-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 30,720GB Up to 720K IOPS(6) Up to 175K IOPS(6) Up to 4,200 MB/s Up to 4,100 MB/s
PM7-V Mixed Use 3 DWPD 1,600GB - 12,800GB Up to 355K IOPS
CM6 (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM6-R Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 1,400K IOPS(6) Up to
170K IOPS(6)
Up to
6,900 MB/s
Up to
4,200 MB/s
CM6-V Mixed Use SIE / FIPS 3 DWPD 1,600GB - 6,400GB Up to
350K IOPS
CM7 E3.S (Enterprise NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CM7-R (E3.S) Read Intensive SIE / FIPS 1 DWPD(4) 1,920GB - 15,360GB Up to 2,700K IOPS(6) Up to
310K IOPS(6)
Up to
14,000 MB/s
Up to
6,750 MB/s
CM7-V (E3.S) Mixed Use SIE / FIPS 3 DWPD 1,600GB - 12,800GB Up to
600K IOPS
CD8 (Data Center NVMe)

* Table can be scrolled horizontally.

Family Workload Data Security & Encryption Options(7) Endurance Capacity(1) Random Read(2) Random Write(2) Sequential Read(3) Sequential Write(3)
CD8-R Read Intensive SIE 1 DWPD(4) 960GB - 15,360GB Up to 1,250K IOPS(6) Up to 200K IOPS Up to 7,200 MB/s Up to 6,000 MB/s
  1. Definição de capacidade: a KIOXIA define um megabyte (MB) como 1.000.000 bytes, um gigabyte (GB) como 1.000.000.000 bytes e um terabyte (TB) como 1.000.000.000.000 bytes. No entanto, um sistema operacional de computador relata a capacidade de armazenamento usando potências de 2 para a definição de 1 GB = 230 = 1.073.741.824 bytes e, portanto, indica menor capacidade de armazenamento. A capacidade de armazenamento disponível (incluindo exemplos de vários arquivos de mídia) varia de acordo com o tamanho do arquivo, a formatação, as configurações, o software e o sistema operacional, como o sistema operacional Microsoft e/ou aplicativos de software pré-instalados ou ainda conteúdo de mídia. A capacidade formatada real poderá variar.

  2. Esse desempenho é baseado em uma carga de trabalho de leitura/gravação aleatória de 4K. A velocidade de leitura e gravação poderá variar de acordo com o dispositivo host, as condições de leitura e gravação e o tamanho do arquivo.

  3. Esse desempenho é baseado em uma carga de trabalho de leitura/gravação sequencial de 64K. A velocidade de leitura e gravação poderá variar de acordo com o dispositivo host, as condições de leitura e gravação e o tamanho do arquivo.

  4. DWPD: Gravação de unidade por dia (Drive Write Per Day), Uma gravação completa da unidade por dia significa que a unidade pode ser gravada e reescrita em capacidade total uma vez por dia, todos os dias, durante cinco anos, o período de garantia declarado do produto. Os resultados reais podem variar devido à configuração do sistema, uso e outros fatores. Isso é calculado assumindo o pior caso de carga de trabalho aleatória de 4K.

  5. Os termos e serviços da garantia de SSDs com a marca Dell são cobertos pela Dell Corporation, e não pela KIOXIA.

  6. IOPS: entrada/saída por segundo (ou o número de operações de E/S por segundo).

  7. Segurança de dados
    - A opção Sanitize Instant Erase (SIE) suporta Crypto Erase, que é um recurso padronizado definido pela NVM Express Inc. ou pelos comitês técnicos (T10/T13) do INCITS (o Comitê InterNacional de Padrões de Tecnologia da Informação).
    - SSDs SED (Self-Encrypting Drive) são compatíveis com TCG Enterprise SSC ou TCG Opal SSC
    -Os drives FIPS são validados como nível 2 do FIPS 140-2, que define os requisitos de segurança para módulo criptográfico pelo NIST (Instituto Nacional de Padrões e Tecnologia).
    A velocidade de leitura e gravação poderá variar dependendo do dispositivo host, das condições de leitura e gravação e do tamanho do arquivo..

Sujeito a alterações: embora a KIOXIA tenha envidado todos os esforços no momento da publicação para garantir a precisão das informações aqui fornecidas, as especificações dos produtos, as configurações, os preços e a disponibilidade dos sistemas/componentes/opções estão todos sujeitos a alterações sem aviso prévio.

Dell e PowerEdge são marcas comerciais da Dell, Inc.

NVMe é uma marca comercial da NVM Express, Inc.

Broadcom é marca comercial registrada da Broadcom Corporation
