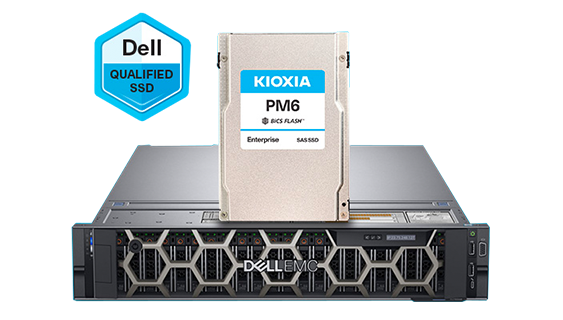

PM6 Series 24G Enterprise SAS SSD
Built on KIOXIA Corporation BiCS FLASH™ 3D TLC (3-bit-per-cell) for Dell PowerEdge™ Servers
Why Choose PM6 Series 24G Enterprise SAS SSDs for Your Dell EMC PowerEdge™ Servers
High performance 24G SAS interface
Broad range of security options
Reliable BiCS FLASH 3D TLC Memory
Enterprise SAS is a highly reliable and very high performance SSD, with dual-port support for PowerEdge servers and Dell EMC storage systems. It has a wide range of endurance, capacity and security options. It also works with PERC RAID cards.
Quick Specs
* Table can be scrolled horizontally.
Family | Workload | Data Security & Encryption Options(7) | Endurance | Capacity(1) | Random Read/Write(2) | Sequential Read/Write(3) |
---|---|---|---|---|---|---|
PM6-R | Read Intensive | SIE / FIPS | 1 DWPD(4) | 960GB - 15,360GB | Up to 415K/105K IOPS(6) |
UP to 2,200/2,150 MB/s |
PM6-V | Mixed Use | 3 DWPD | 800GB - 12,800GB | Up to 415K/240K IOPS |
||
PM6-M | Write Intensive | SIE | 10 DWPD | 400GB - 3,200GB | Up to 415K/300K IOPS |
PM6-R Series
For Read Intensive Workloads
- Media streaming
- Machine learning
- File/application services
- Business intelligence
- Content management
- Big data/analytics
- Backup
Read intensive, 1 DWPD or less, models are designed for read-intensive applications. The PM6-R Series delivers features and performance suited for a range of enterprise and hyper-scale workloads. These read-intensive models are available in capacities up to 15.36TB.
PM6-V Series
For Mixed Use Workloads
- SQL/transactional database
- Financial trading
- Imaging
- Content management
- Big data/analytics
- Software defined storage
Mixed use, 3 DWPD models, are designed for mixed read and write workloads. KIOXIA's PM6-V Series models provide a balance of excellent performance with endurance, and as all PM6 Series models, it includes power-loss protection and full data path protection. These drives offer capacities up to 12TB and are suitable for a wide range of applications.
PM6-M Series
For Write Intensive Workloads
- Financial trading
- Online transaction processing (OLTP)
- Software defined storage
- Sensor, radar and signal processing
Write intensive, 10 DWPD models, are designed for mixed read and write workloads, with a special emphasis on write performance, mission-critical hyperscale and virtualized environments. KIOXIA's 10 DWPD models provide very high levels of predictable and consistent performance. With capacities up to 3.2TB, the 10 DWPD models are suitable for online transaction processing (OLTP), financial trading, SDS, e-commerce and many more high endurance applications.
Specifications
* Table can be scrolled horizontally.
Family | Data Security & Encryption Options(7) | Capacity(1) | Random Read(2) | Random Write(2) | Sequential Read(3) | Sequential Write(3) | Min Terabytes Written(8) |
---|---|---|---|---|---|---|---|
PM6-R Read Intensive 1 DWPD(4) for 5 Years(5) |
SIE/ FIPS | 960GB | 415K IOPS(6) | 75K IOPS | 2,200 MB/s | 1,450 MB/s | 1,752TB |
1,920GB | 90K IPS | 2,150 MB/s | 3,504TB | ||||
3,840GB | 105K IOPS | 2,050 MB/s | 7,008TB | ||||
7,680GB | 390K IOPS | 80K IOPS | 1,650 MB/s | 14,016TB | |||
15,360GB | 375K IOPS | 84K IOPS | 28,032TB | ||||
PM6-V Mixed Use 3 DWDP for 5 Years |
SIE | 800GB | 415K IOPS | 135K IOPS | 2,200 MB/s | 1,450 MB/s | 4,380TB |
1,600GB | 200K IOPS | 2,150 MB/s | 8,760TB | ||||
3,200GB | 240K IOPS | 17,520TB | |||||
6,400GB | 150K IOPS | 35,040TB | |||||
12,800GB | 70,080TB | ||||||
FIPS | 960GB | 415K IOPS | 95K IOPS | 2,200 MB/s | 1,450 MB/s | 5,256TB | |
1,920GB | 135K IOPS | 2,150 MB/s | 10,512TB | ||||
3,840GB | 21,024TB | ||||||
7,680GB | 115K IOPS | 42,048TB | |||||
PM6-M Write Intensive 10 DWPD for 5 Years
|
SIE | 400GB | 415K IOPS | 300K IOPS | 2,200 MB/s | 1,450 MB/s | 7,300TB |
800GB | 2,150 MB/s | 14,600TB | |||||
1,600GB | 2,050 MB/s | 29,200TB | |||||
3,200GB | 1,650 MB/s | 58,400TB |
Ordering Information
Contact Us
Get the most out of your Dell PowerEdge servers with KIOXIA PM6 Enterprise SAS SSDs.
- Definition of capacity: KIOXIA defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 230 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- This performance is based on a random 4K read/write workload. Read and write speed may vary depending on the host device, read and write conditions, and file size.
- This performance is based on a sequential 64K read/write workload. Read and write speed may vary depending on the host device, read and write conditions, and file size.
- DWPD: Drive Write Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for five years, the stated product warranty period. Actual results may vary due to system configuration, usage and other factors. This is computed assuming a worst case 4K random workload.
- The Dell Branded SSD warranty terms and service are covered by Dell Corporation and not KIOXIA.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- Data Security:
- Sanitize Instant Erase (SIE) option supports Crypto Erase, which is a standardized feature defined by the technical committees (T10/T13) of INCITS (the Inter National Committee for Information Technology Standards) or by NVM Express Inc.
- SED (Self-Encrypting Drive) SSDs support TCG Enterprise SSC or TCG Opal SSC
- FIPS drives are validated as FIPS 140-2 Level 2 which defines security requirements for cryptographic module by NIST (National Institute of Standards and Technology).Read and write speed may vary depending on the host device, read and write conditions, and file size.
- Measured using worst-case 4K random write workload.
Subject to Change: While KIOXIA has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.
Product image may represent design model.
