Memory Selector – Help Me Choose

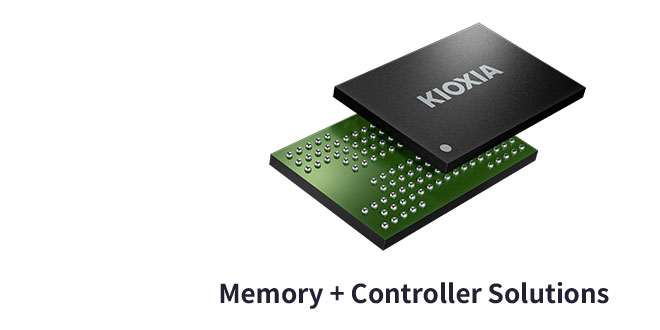

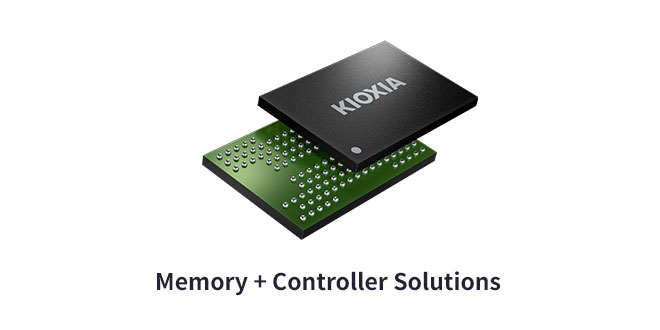

Memory + Controller Solutions

e-MMC (4GB - 256GB)
UFS (32GB - 1TB)
SSD (512GB - 100TB)

e-MMC Managed Flash (4, 8, 16, 32, 64, 128, 256GB)

Common Applications (not limited to)

TV / STB
Streaming devices
IOT
Laser printers
POS

Features / Benefits

Embedded HW controller
Broad SoC support
Wide temperature support
Wide market adoption
Industry standard

Consumer Grade e-MMC Specs

*Table can be scrolled horizontally.

Capacity	Part Number	e-MMC Version	Max Data Rate (MB/s)	Supply Voltage		Operating Temperature (℃)	Package Size (mm)
Capacity	Part Number	e-MMC Version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	Operating Temperature (℃)	Package Size (mm)
4GB	THGBMNG5D1LBAIT	5.0	400	2.7 to 3.6	1.70 to 1.95, 2.7 to 3.6	-25 to 85	11.0x10.0x0.8
4GB	THGBMTG5D1LBAIL	5.0					11.5x13.0x0.8
8GB	THGBMUG6C1LBAIL	5.1
16GB	THGAMVG7T13BAIL				1.70 to 1.95
32GB	THGAMVG8T13BAIL
64GB	THGAMSG9T15BAIL
128GB	THGAMST0T25BAIL

Industrial Grade⁽³⁾ e-MMC Specs

*Table can be scrolled horizontally.

Capacity	Part Number	e-MMC Version	Max Data Rate (MB/s)	Supply Voltage		Operating Temperature (℃)	Package Size (mm)
Capacity	Part Number	e-MMC Version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ(V)	Operating Temperature (℃)	Package Size (mm)
8GB	THGBMJG6C1LBAU7	5.1	400	2.7 to 3.6	1.70 to 1.95, 2.7 to 3.6	-40 to 105⁽¹⁾	11.5x13.0x1.0
16GB	THGBMJG7C2LBAU8	5.1	400	2.7 to 3.6	1.70 to 1.95, 2.7 to 3.6	-40 to 105⁽¹⁾	11.5x13.0x1.2

Automotive e-MMC Specs

AEC-Q100 Grade 2⁽²⁾

*Table can be scrolled horizontally.

Capacity	Part Number	e-MMC version	Max Data Rate (MB/s)	Supply Voltage		Operating Temperature (℃)	Package Size (mm)
Capacity	Part Number	e-MMC version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	Operating Temperature (℃)	Package Size (mm)
8GB	THGBMJG6C1LBAC7	5.1	400	2.7 to 3.6	1.70 to 1.95, 2.7 to 3.6	-40 to 105⁽¹⁾	11.5x13.0x1.0
16GB	THGBMJG7C2LBAC8						11.5x13.0x1.2
32GB	THGBMJG8C4LBAC8
64GB	THGBMJG9C8LBAC8
32GB	THGAMVG8T13BAB7				1.70 to 1.95		11.5x13.0x1.0
64GB	THGAMVG9T23BAB8						11.5x13.0x1.2
128GB	THGAMVT0T43BAB8						11.5x13.0x1.2
256GB	THGAMVT1T83BAB5						11.5x13.0x1.3

AEC-Q100 Grade 3

*Table can be scrolled horizontally.

Capacity	Part Number	e-MMC version	Max Data Rate (MB/s)	Supply Voltage		Operating Temperature (℃)	Package Size (mm)
Capacity	Part Number	e-MMC version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	Operating Temperature (℃)	Package Size (mm)
32GB	THGAMVG8T13BAA7	5.1	400	2.7 to 3.6	1.70 to 1.95	-40 to 85	11.5x13.0x1.0
64GB	THGAMVG9T23BAA8						11.5x13.0x1.2
128GB	THGAMVT0T43BAA8						11.5x13.0x1.2
256GB	THGAMVT1T83BAA5						11.5x13.0x1.3

Tc=115℃ max.
Electrical component qualification requirements defined by the AEC (Automotive Electronics Council).
Details about your intended usage would be checked before submitting samples of the Industrial grade products.

Please contact KIOXIA Sales to get updated product status and availability.
e-MMC is a product category for a class of embedded memory products built to the JEDEC e-MMC Standard specification.
In every mention of a Kioxia product: Product density is identified based on the density of memory chip(s) within the Product, not the amount of memory capacity available for data storage by the end user. Consumer-usable capacity will be less due to overhead data areas, formatting, bad blocks, and other constraints, and may also vary based on the host device and application. For details, please refer to applicable product specifications. The definition of 1KB = 2^10 bytes = 1,024 bytes. The definition of 1Gb = 2^30 bits = 1,073,741,824 bits. The definition of 1GB = 2^30 bytes = 1,073,741,824 bytes. 1Tb = 2^40 bits = 1,099,511,627,776 bits.
Capacity disclaimer: Definition of capacity: Kioxia Corporation defines a kilobyte (KB) as 1,000 bytes, a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes, a terabyte (TB) as 1,000,000,000,000 bytes, and a kibibyte (KiB) is 1,024 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 bytes = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
Product Speed ratings disclaimer: Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
Product Image disclaimer: Approved images may differ from the actual product and services.

UFS Managed Flash (32, 64, 128, 256, 512GB, 1TB)

Common Applications (not limited to)

Smartphones
Augmented and virtual reality
Tablets
Video recording
Automotive

Features / Benefits

Embedded HW controller
High performance
Small package size (9x13mm)
Wide temperature support
Industry standard

Consumer/Industrial UFS Specs

UFS 4.0/4.1

*Table can be scrolled horizontally.

Capacity	Part Number	UFS Version	Max Data Rate (MB/s)	Supply Voltage			Operating Temperature (℃)	Package Size (mm)
Capacity	Part Number	UFS Version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	V_CCQ2 (V)	Operating Temperature (℃)	Package Size (mm)
256GB	THGJFMT1E45BATV	4.0	4640	2.4 to 2.7	1.14 to 1.26	- ⁽¹⁾	-25 to 85	9.0x13.0x0.8
512GB	THGJFMT2E46BATV							9.0x13.0x0.8
1TB	THGJFMT3E86BATZ							9.0x13.0x0.9
256GB	THGJFRT1E45BATV	4.1						9.0x13.0x0.8
512GB	THGJFRT2E48BATV							9.0x13.0x0.8
1TB	THGJFRT3E88BATW							9.0x13.0x0.85

UFS 3.1

*Table can be scrolled horizontally.

Capacity	Part Number	UFS Version	Max Data Rate (MB/s)	Supply Voltage			Operating Temperature (℃)	Package Size (mm)
Capacity	Part Number	UFS Version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	V_CCQ2 (V)	Operating Temperature (℃)	Package Size (mm)
128GB	THGJFPT0E18BAIP	3.1	2320	2.4 to 2.7, 2.7 to 3.6	1.14 to 1.26	- ⁽¹⁾	-25 to 85	11.0x13.0x0.8
256GB	THGJFPT1E28BAIP
512GB	THGJFPT2E48BAIP

Automotive UFS 4.0 Specs

AEC-Q100 Grade 2⁽²⁾

*Table can be scrolled horizontally.

Capacity	Part Number	UFS version	Max Data Rate (MB/s)	Supply Voltage			Operating Temperature (℃) ⁽⁴⁾	Package Size (mm)
Capacity	Part Number	UFS version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	V_CCQ2 (V)	Operating Temperature (℃) ⁽⁴⁾	Package Size (mm)
128GB	THGJFJT0T25BAB8	4.0	4640	2.4 to 2.7	1.14 to 1.26	- ⁽¹⁾	-40 to 105	11.5x13.0x1.2
256GB	THGJFJT1T45BAB8							11.5x13.0x1.2
512GB	THGJFJT2T85BAB5							11.5x13.0x1.3

AEC-Q100 Grade 3

*Table can be scrolled horizontally.

Capacity	Part Number	UFS version	Max Data Rate (MB/s)	Supply Voltage			Operating Temperature (℃) ⁽⁴⁾	Package Size (mm)
Capacity	Part Number	UFS version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	V_CCQ2 (V)	Operating Temperature (℃) ⁽⁴⁾	Package Size (mm)
128GB	THGJFJT0T25BAA8	4.0	4640	2.4 to 2.7	1.14 to 1.26	- ⁽¹⁾	-40 to 85	11.5x13.0x1.2
256GB	THGJFJT1T45BAA8							11.5x13.0x1.2
512GB	THGJFJT2T85BAA5							11.5x13.0x1.3

Automotive UFS 3.1/2.1 Specs

AEC-Q100 Grade 2⁽²⁾

*Table can be scrolled horizontally.

Capacity	Part Number	UFS version	Max Data Rate (MB/s)	Supply Voltage			Operating Temperature (℃) ⁽⁴⁾	Package Size (mm)
Capacity	Part Number	UFS version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	V_CCQ2 (V)	Operating Temperature (℃) ⁽⁴⁾	Package Size (mm)
32GB	THGAFBG8T13BAB7⁽⁶⁾	2.1	1160	2.7 to 3.6	- ⁽²⁾	1.70 to 1.95	-40 to 105	11.5x13.0x1.0
32GB	THGAFEG8T13BAB7							11.5x13.0x1.0
64GB	THGAFBG9T23BAB8⁽⁶⁾							11.5x13.0x1.2
64GB	THGAFEG9T23BAB8
128GB	THGAFBT0T43BAB8⁽⁶⁾
128GB	THGAFET0T43BAB8
256GB	THGAFBT1T83BAB5⁽⁶⁾							11.5x13.0x1.3
256GB	THGAFET1T83BAB5							11.5x13.0x1.3
64GB	THGJFGG9T15BAB8	3.1	2320	2.4 to 2.7, 2.7 to 3.6	1.14 to 1.26	- ⁽¹⁾	-40 to 105	11.5x13.0x1.2
128GB	THGJFGT0T25BAB8
256GB	THGJFGT1T45BAB8
512GB	THGJFGT2T85BAB5							11.5x13.0x1.3

AEC-Q100 Grade 3

*Table can be scrolled horizontally.

Capacity	Part Number	UFS version	Max Data Rate (MB/s)	Supply Voltage			Operating Temperature (℃) ⁽⁵⁾	Package Size (mm)
Capacity	Part Number	UFS version	Max Data Rate (MB/s)	V_CC (V)	V_CCQ (V)	V_CCQ2 (V)	Operating Temperature (℃) ⁽⁵⁾	Package Size (mm)
64GB	THGJFGG9T15BAA8	3.1	2320	2.4 to 2.7, 2.7 to 3.6	1.14 to 1.26	- ⁽¹⁾	-40 to 85	11.5x13.0x1.2
128GB	THGJFGT0T25BAA8
256GB	THGJFGT1T45BAA8
512GB	THGJFGT2T85BAA5							11.5x13.0x1.3

This product supports dual-supply operation at V_CC and V_CCQ. V_CCQ2 need not be supplied.
This product supports dual-supply operation at V_CC and V_CCQ2. V_CCQ need not be supplied.
Electrical component qualification requirements defined by the AEC (Automotive Electronics Council).
Tc=115℃ max.
Tc=95℃ max.
Maximum pre-load capacity is limited to about 25% of the user area capacity.

Please contact KIOXIA Sales to get updated product status and availability.
Universal Flash Storage (UFS) is a product category for a class of embedded memory products built to the JEDEC UFS standard specification.
In every mention of a Kioxia product: Product density is identified based on the density of memory chip(s) within the Product, not the amount of memory capacity available for data storage by the end user. Consumer-usable capacity will be less due to overhead data areas, formatting, bad blocks, and other constraints, and may also vary based on the host device and application. For details, please refer to applicable product specifications. The definition of 1KB = 2^10 bytes = 1,024 bytes. The definition of 1Gb = 2^30 bits = 1,073,741,824 bits. The definition of 1GB = 2^30 bytes = 1,073,741,824 bytes. 1Tb = 2^40 bits = 1,099,511,627,776 bits.
Capacity disclaimer: Definition of capacity: Kioxia Corporation defines a kilobyte (KB) as 1,000 bytes, a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes, a terabyte (TB) as 1,000,000,000,000 bytes, and a kibibyte (KiB) is 1,024 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 bytes = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
Product Speed ratings disclaimer: Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
Product Image disclaimer: Approved images may differ from the actual product and services.

SSD (Solid State Drive)

Common Applications (not limited to)

Client: tablets, laptops, PCs
Data Center/Enterprise: servers, storage, cloud, edge, hyperscale and enterprise
Embedded/Industrial
Space

Features / Benefits

High performance for servers and storage
Range of SSDs for various applications (client, servers, storage)
Small to large capacities
Endurance options based on workload (1, 3 or more DWPD)
SSDs can be combined to create massive storage pool
Form factor options for various compute architectures
Encryption and other security options
Interface options: NVMe, SAS, SATA, CXL
Specialized SSDs for unique use cases (SCM)

* Table can be scrolled horizontally.

Category	Enterprise SSD	Data Center SSD	Client SSD
Key Features	High Functionality High Reliability High Availability Security Manageability	Low Latency Low Power Consumption High Performance High Reliability Availability	Small Light Weight Low Power Consumption
Key Applications	On-premises Servers Storage Systems, etc.	Large-scale Data Centers Low-end Servers Cloud Data Servers, etc.	Ultra-mobile PCs 2-in-1 notebook PCs Thin performance notebook PCs
Form Factor	2.5-inch E3.S (7.5mm)	2.5-inch E1.S (9.5mm, 15mm) E3.S	M.2 Type 1620 Single Package M.2 Type 2230 Single-sided M.2 Type 2280 Single-sided M.2 Type 2280 Double-sided
Capacities	1,600GB - 122.88TB	800GB - 15TB	512GB - 4TB

Capacity disclaimer: Definition of capacity: Kioxia Corporation defines a kilobyte (KB) as 1,000 bytes, a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes, a terabyte (TB) as 1,000,000,000,000 bytes, and a kibibyte (KiB) is 1,024 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 bytes = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
DWPD disclaimer: DWPD: Drive Write(s) Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day under the specified workload for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
Security Options disclaimer: Security optional models are not available in all countries due to export and local regulations.
NVMe: NVMe is a registered or unregistered trademark of NVM Express, Inc. in the United States and other countries.
Product Image disclaimer: Approved images may differ from the actual product and services.
All other company names, product names, and service names mentioned herein may be trademarks of their respective companies.

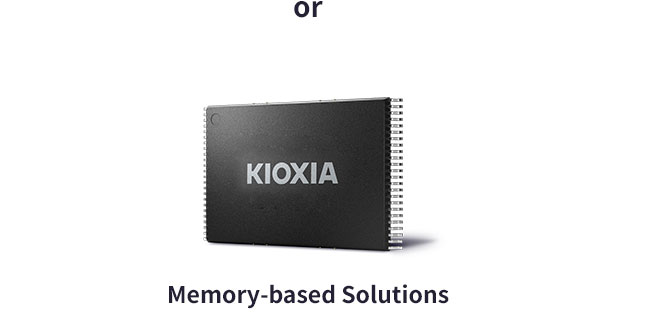

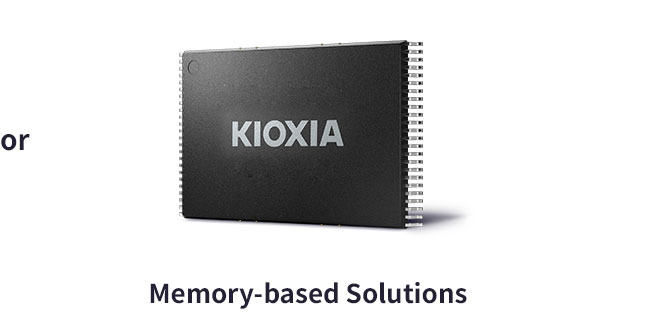

Memory-based Solutions

TLC (512Gb)
QLC (1.33Tb, 2Tb)
SLC (1Gb - 256Gb)
XL-FLASH (64Gb - 256Gb)

TLC NAND (512Gb)

Common Applications (not limited to)

Enterprise
Data center
PC / gaming
Edge computing

Features / Benefits

Widely supported by controller partners
Lower cost per bit compare to MLC
Wide temp range support -40°C ~ +85°C
Longevity support for Industrial TLC

Please contact the KIOXIA sales representative for more information.

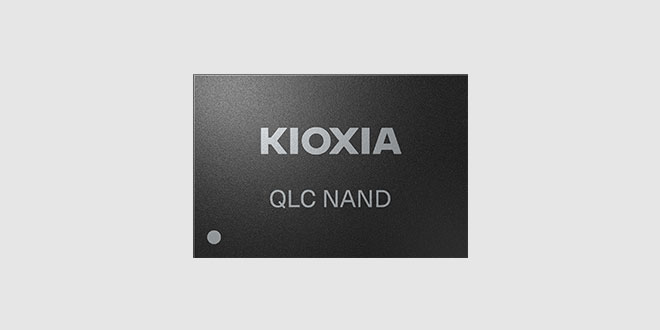

QLC NAND (1.33Tb, 2Tb)

Common Applications (not limited to)

CXL memory solution
Read intensive applications
AI / ML

Features / Benefits

Better scalability compared to DRAM
Better cost performance compared to DRAM
Low latency for SCM
Easy to adopt for controller vendors

Please contact the KIOXIA sales representative for more information.

SLC NAND (1, 2, 4, 8, 16, 32, 64, 128, 256Gb)

Common Applications (not limited to)

TV / STB
Streaming devices
IOT
Laser printers
POS

Features / Benefits

Embedded HW controller
Broad SoC support
Wide temperature support
Wide market adoption
Industry standard

Density	1 Gb	2 Gb	4 Gb	8 Gb	16 Gb	32 Gb*

Please click on any item to show detailed product lineup and to download datasheet.

Please contact the KIOXIA sales representative for information about 32Gb.

XL-FLASH Memory (64, 128, 256Gb)

Common Applications (not limited to)

CXL memory solution
Read intensive applications
AI / MI

Features / Benefits

Better scalability compared to DRAM
Better cost performance compared to DRAM
Low latency for SCM
Easy to adopt for controller vendors

*Table can be scrolled horizontally.

Capacity	Part Number	Technology	Cell	Operating Temperature (°C)	Package	Status
64GB	TH58LKG9DA5BA4R	BiCS FLASH™	MLC SLC mode supported	0 to 70	154Ball BGA 11.5x13.5mm	Production
128GB	TH58LKT0DA5BA8R
256GB	TH58LKT1DA5BA8S
