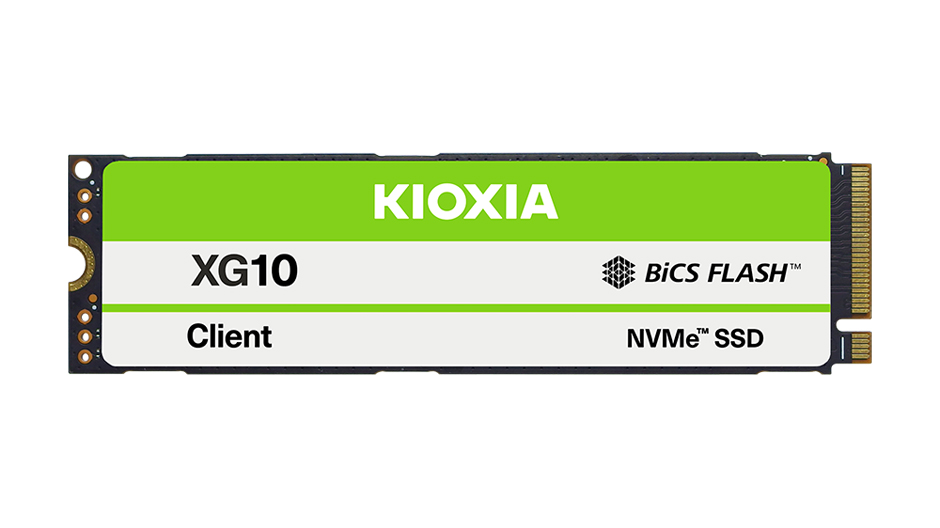

KIOXIA XG10 Series (M.2)
-
/
-
Client NVMe™ SSD
KIOXIA XG10 Series leverages a PCIe® Gen5 x4 interface and BiCS FLASH™ generation 8*. The XG10 Series SSDs reach up to sequential read/write speeds of 14,000 MB/s and 12,000 MB/s respectively and deliver up to 2,000 KIOPS random read and 1,600 KIOPS random write.
The new XG10 Series is optimized for high-performance notebook PCs, desktop PCs, and performance-oriented gaming PCs.
Available in a compact M.2 Type 2280 form factor, the XG10 Series comes in four capacity models of 512 GB, 1,024 GB, 2,048 GB and 4,096 GB, each with the option of a Self-Encrypting Drive (SED) model supporting TCG Opal 2.02.
- KIOXIA BiCS FLASH™ generation 6 flash memory for 512 GB and 1,024 GB capacity XG10 SSDs
Key Features
- KIOXIA BiCS FLASH™ generation 8 flash memory (KIOXIA BiCS FLASH™ generation 6 flash memory for 512 GB and 1,024 GB)
- PCIe® 5.0, NVMe™2.0d specification compliant
- Capacities up to 4,096 GB
- M.2 Type 2280 Single-sided form factor
- TCG Opal 2.02 Optional for SED
Key Applications
- Thin performance notebook PCs
- High-performance desktop PCs
- Gaming PCs
- AI PCs
* Table can be scrolled horizontally.
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: Kioxia Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- Read and write speed, tested on the state of "SLC cache=ON", may vary depending on the host device, read and write conditions, and file size.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
- All information provided here is subject to change without prior notice.
