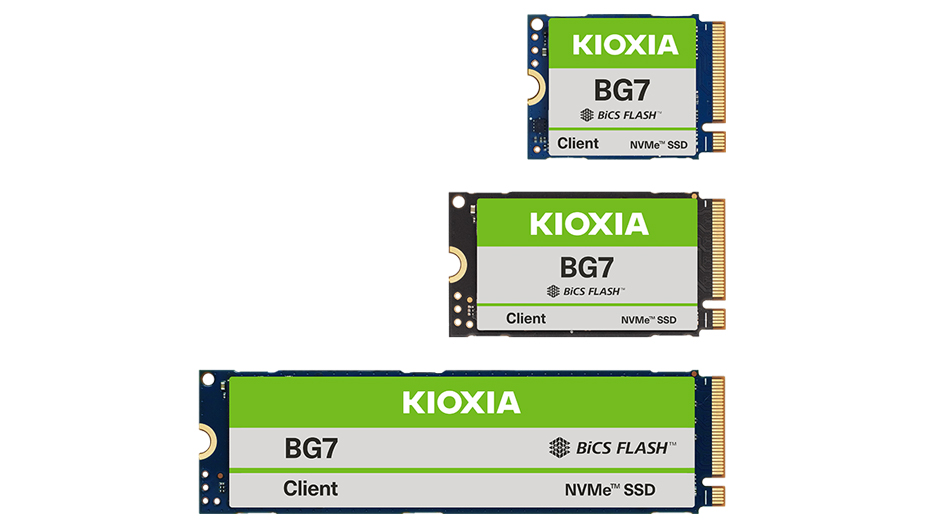

Serie KIOXIA BG7 (M.2)
-
/
-
SSD NVMe SSD del cliente
La serie BG7 de KIOXIA es una línea de SSD NVMe™ de formato compacto con capacidades de hasta 2048 GB y aprovecha una interfaz compatible con las especificaciones PCIe® 4.0, NVMe™ 2.0d y memoria flash TLC KIOXIA BiCS FLASH™ de 8.ª generación*. Con mayor ancho de banda, administración de flash mejorada y tecnología Host Memory Buffer (HMB), los SSD de la serie BG7 ofrecen un rendimiento de lectura muy alto para SSD de formato compacto de hasta 7000 MB/s (lectura secuencial) y hasta 1000K IOPS (lectura aleatoria).
Los SSD de la serie BG7 de KIOXIA están disponibles en capacidades de 256 GB, 512 GB, 1.024 GB y 2.048 GB en factores de forma de módulo M.2 Tipo 2230, Tipo 2242 y Tipo 2280, lo que los hace adecuados para diseños de sistemas delgados y livianos, como PC ultradelgadas y PC de IA. La serie KIOXIA BG7 ofrece la opción de un modelo de unidad con autocifrado (SED) compatible con Opal de TCG versión 2.01.
- Memoria flash TLC KIOXIA BiCS FLASH™ de 6.ª generación para SSD BG7 de 256 GB de capacidad Documentos
Documentos
Características
- Memoria flash TLC KIOXIA BiCS FLASH™ de 8.ª generación (memoria flash TLC KIOXIA BiCS FLASH™ de 6.ª generación para 256 GB)
- Compatible con especificaciones PCIe® 4.0 y NVMe™ 2.0d
- Capacidades de hasta 2.048 GB
- Factores de forma de una sola cara M.2 Tipo 2230, Tipo 2242 y Tipo 2280
- Opción con SED TCG OPAL 2.01
Aplicaciones principales
- Computadoras ultramóviles
- PC de IA
- Computadoras portátiles 2 en 1
Especificaciones

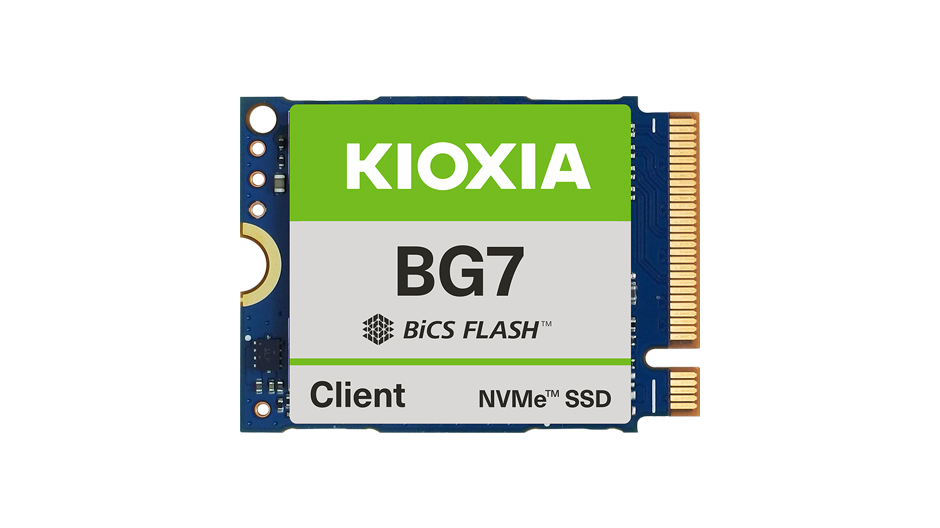

M.2 Tipo 2230-S2 / -S3 unilateral
* Table can be scrolled horizontally.
| Base Model Number | KBG70ZNS2T04 | KBG70ZNS1T02 | KBG70ZNS512G | KBG70ZNS256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNS2T04 | KBG7BZNS1T02 | KBG7BZNS512G | KBG7BZNS256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2230-S3 Single-sided | M.2 2230-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 30 ｍｍ ± 0.15 mm | |||
| Weight | 3.2 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||

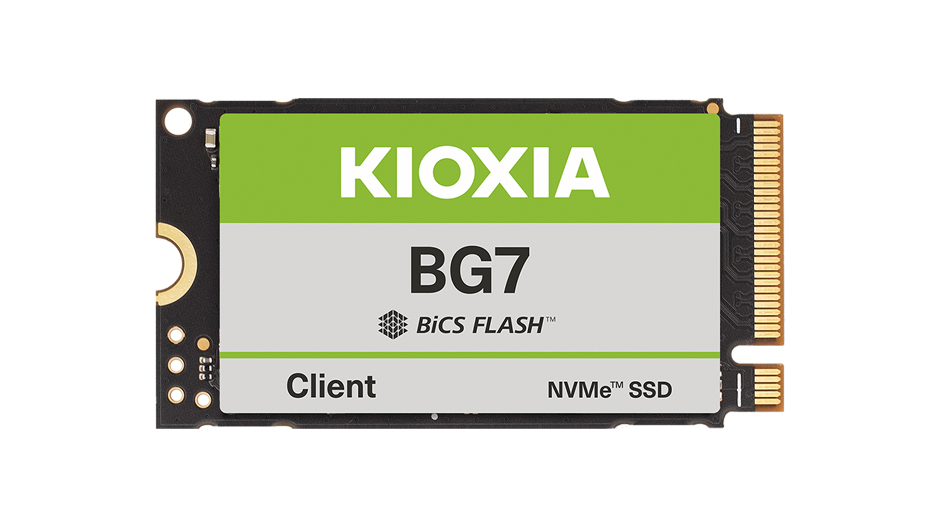

M.2 Tipo 2242-S2 / -S3 unilateral
* Table can be scrolled horizontally.
| Base Model Number | KBG70ZNT2T04 | KBG70ZNT1T02 | KBG70ZNT512G | KBG70ZNT256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNT2T04 | KBG7BZNT1T02 | KBG7BZNT512G | KBG7BZNT256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2242-S3 Single-sided | M.2 2242-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 42 ｍｍ ± 0.15 mm | |||
| Weight | 3.8 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||

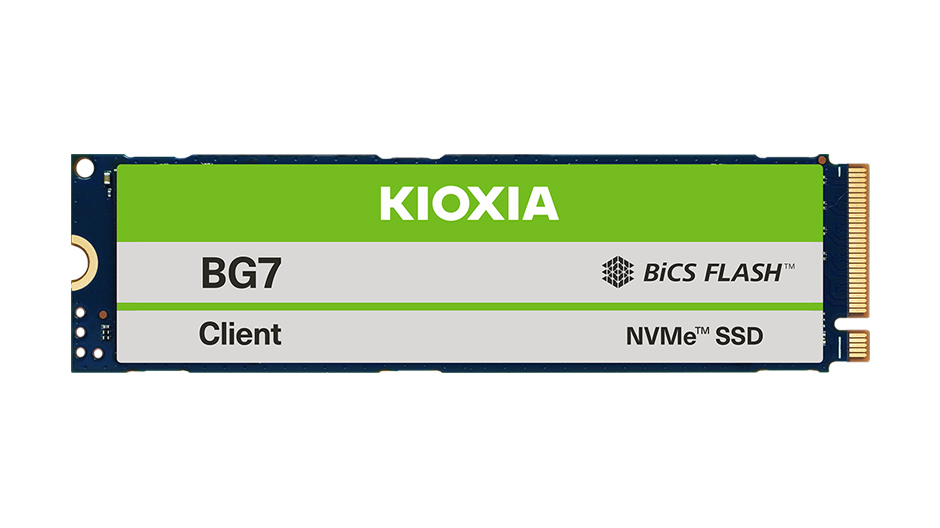

M.2 Tipo 2280-S2 / -S3 unilateral
* Table can be scrolled horizontally.
| Base Model Number | KBG70ZNV2T04 | KBG70ZNV1T02 | KBG70ZNV512G | KBG70ZNV256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNV2T04 | KBG7BZNV1T02 | KBG7BZNV512G | KBG7BZNV256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2280-S3 Single-sided | M.2 2280-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 80 ｍｍ ± 0.15 mm | |||
| Weight | 6.3 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- TBW: Terabytes Written. The number of terabytes that may be written to the SSD for the specified lifetime.
- Read and write speed, tested on the state of "Host Memory Buffer (HMB) = On", may vary depending on the host device, read and write conditions, and file size.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
- All information provided here is subject to change without prior notice.
